  • Ship Store

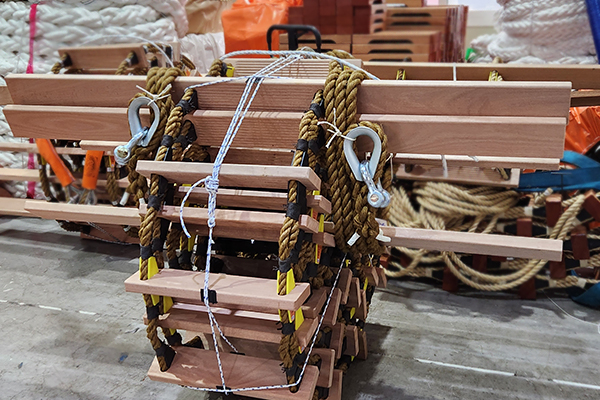

    Pilot Ladder

  • Description

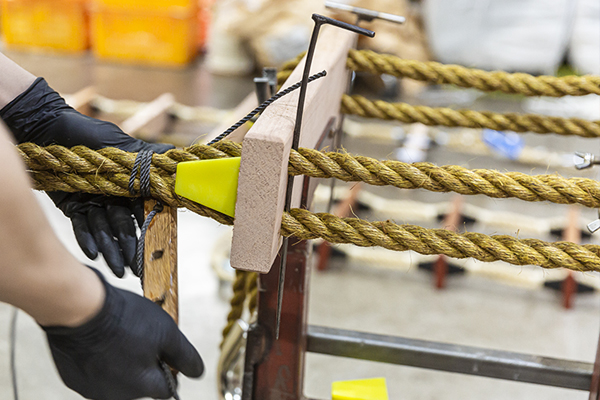

    We provide a ladder for a pilot to embark and disembark safely. For high-quality pilot ladders, only unvarnished and unpainted wood with manila ropes is used. The cut wood, made from ash, oak, beech, or teak, is dried multiple times, a process that leads to even greater strength.

  • Features

  • Filter

    • Ladder

  • Patent

  • Note

Product Specification Regulations Options

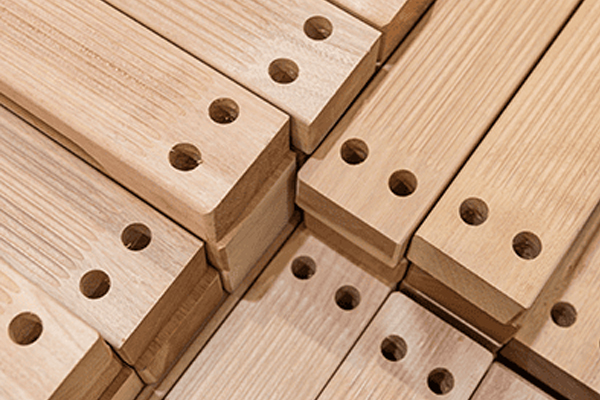

For high-quality pilot ladders, only unvarnished and unpainted wood with manila ropes is used. The cut wood, made from ash, oak, beech, or teak, is dried multiple times, a process that leads to even greater strength.


Important information such as the manufacturer, model name, and manufacturing year is marked on the uppermost step and the underside of the spread step located at the bottom. This marking is essential for the 30-month check.


Furthermore, the ladder's height (in meters) is indicate.

Product Specification Regulations Options


  • Step pitch:310~350mm
  • Side rope : Manila dia 20mm with a strength exceeding 24kN.
  • Step size: 525 x 115 x 28t or 60t
  • Spreader step size: 1800 x 115 x 28t or 60t
  • c/w Marine Equipment Directive (M.E.D) certificate
Product Specification Regulations Options
  • Solas 74 Convention as amended, Regulations V/23, X/3
  • IMO Resolution A.1045 (27)
  • IMO MSC/Circ. 1428
  • ISO 799-1:2019 (E)
  • ISO 799-2/2021
Product Specification Regulations Options







Top

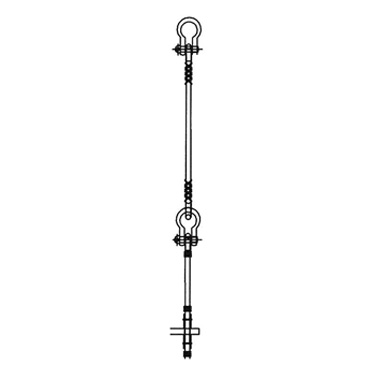

1. Securing Rope

    • Both end shackle
    • 28mm diameter
    • Manila Rope
    • The length of each securing rope shall be at least 3mtr.

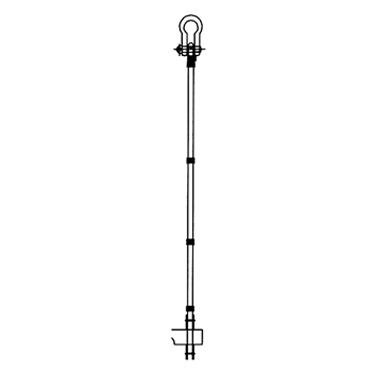

2. Tied Down Rope

    • Seizing 3 points, 20mm diameter
    • Manila Rope



Step

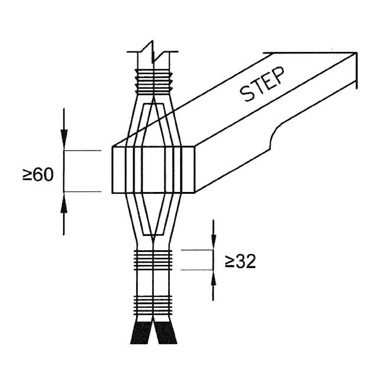

1. Normalization Step

    • Thickness: 60mm
    • Designed for use on a winch

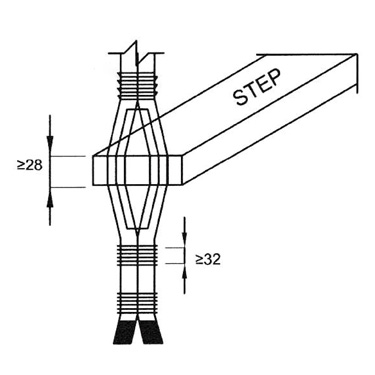

2. Regular Flat Step

    • Thickness: 28mm


Bottom

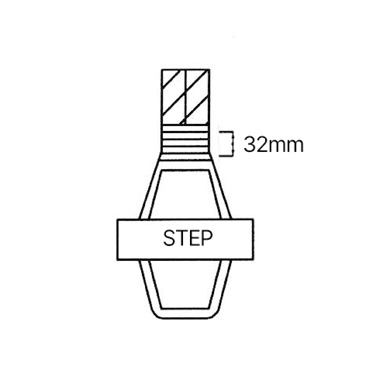

1. Endless Type

2. Standard Type

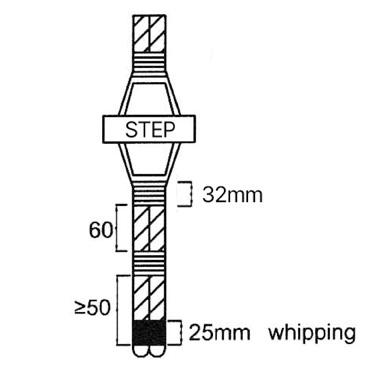

3. Sezing Type

4. Clamp Type
